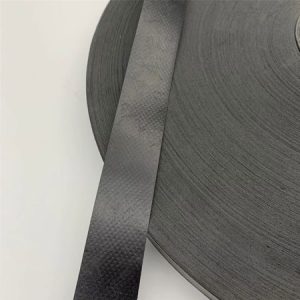

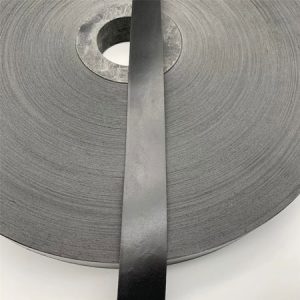

PPD embossed tape
Embossed dot PPD tape is made of polypropylene resin and modified additive, and there is an embossed process on the surface,to increase friction,it will no slip and fall off when in the high speed wrapping process;also the material is firm,and it will not destroyed by the steel tape of amour cable,suitable for wrapping by the high speed wrapping machine in the production of armoured cable and power cable.
PPD tape Physical property
Thickness(mm) | 0.2-0.4mm |
Density(g/cm3) | ≤0.9g/cm3 |
Tensile strength (Mpa) | ≥35N/15mm |
Elongation at break | ≥210% |
Dielectric strength ( KV/mm) | ≥19 |
Volume resistance | ≥1×10^16Ω.cm |
Shrinkage rate | ≤3 |
Melting point | ≥170℃ |
PPD tape description
Applications:Armored power cable, control cable, cross-linked cable, mining cable.communication cable
Regular thickness :0.2mm

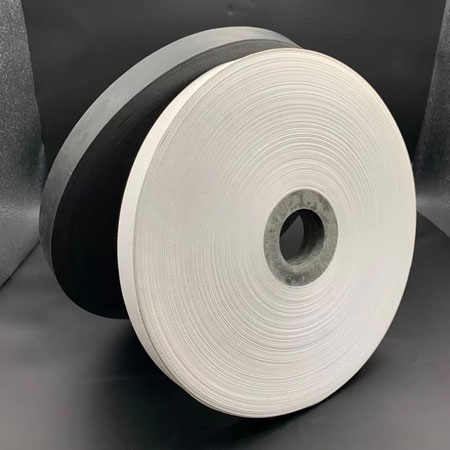

Color: White & Black color
Width: Min 20mm
